A Thermoelectric Chip is a compact electronic component designed to transfer heat from one side to another when electrical current passes through it. Unlike conventional cooling systems that depend on compressors, refrigerants, or moving mechanical parts, thermoelectric Thermoelectric Chip technology uses the Peltier effect to create temperature differences. This makes thermoelectric chips useful for applications where precise, compact, and reliable temperature control is required.
As industries continue to demand smaller and more efficient electronic systems, thermoelectric technology has become increasingly valuable. From electronics and medical equipment to automotive systems and scientific instruments, these chips provide a practical solution for heating and cooling applications.
What Is a Thermoelectric Chip?

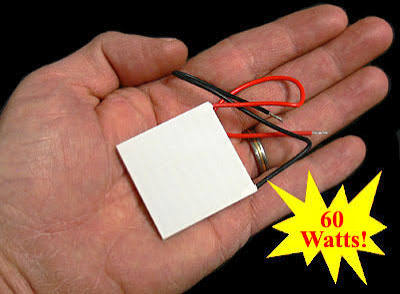

A Thermoelectric Chip consists of semiconductor materials arranged between two ceramic plates. When direct electrical current passes through the semiconductor elements, heat is absorbed on one side and released on the opposite side. Depending on the direction of the current, the chip can provide either cooling or heating.
This operating principle is known as the Peltier effect. It allows a Thermoelectric Chip to regulate temperature without relying on traditional mechanical components. The absence of compressors, motors, and refrigerant-based systems makes thermoelectric devices particularly attractive for compact applications.
The performance of a thermoelectric chip depends on several factors, including semiconductor material, electrical current, temperature difference, heat dissipation, and overall module design.
How Does a Thermoelectric Chip Work?
The operation of a Thermoelectric Chip is based on the movement of charge carriers through semiconductor materials. A typical thermoelectric module contains alternating p-type and n-type semiconductor elements connected electrically in series and thermally in parallel.
When electricity is supplied, the charge carriers move through the semiconductor elements and transport heat from one surface to the other. One ceramic side becomes cooler while the other becomes hotter. The hot side must generally be connected to a heat sink or another cooling system to remove the transferred heat effectively.
Reversing the electrical current reverses the direction of heat transfer. This feature allows thermoelectric systems to provide both cooling and heating, making them versatile for temperature-control applications.
Major Uses of Thermoelectric Chips
Electronics Cooling
One of the most common applications is cooling electronic components. Processors, sensors, laser diodes, cameras, and other sensitive devices can generate significant heat during operation. A Thermoelectric Chip can provide localized cooling where conventional cooling systems may be too large or complicated.
This is particularly useful when only a small component requires temperature control rather than an entire enclosure.
Medical Equipment
Temperature stability is important in many medical and laboratory devices. Thermoelectric modules can be used in diagnostic instruments, sample storage systems, thermal cyclers, and other equipment requiring controlled temperatures.
Their compact size and precise temperature regulation make them suitable for equipment where consistent thermal conditions are essential.
Food and Beverage Cooling
Thermoelectric technology is also used in portable refrigerators, beverage coolers, and compact cooling boxes. Because thermoelectric systems do not require traditional refrigerant compressors, they can be designed in smaller and more portable formats.
These systems are particularly useful for personal cooling applications, vehicles, and small storage units.
Automotive Applications
Modern vehicles contain numerous electronic systems that require temperature management. Thermoelectric devices can assist with cooling sensors, electronic components, and specialized vehicle systems.
They can also be incorporated into automotive comfort and thermal-management technologies where compact temperature control is beneficial.
Laser and Optical Equipment
Laser systems and optical components can be sensitive to temperature fluctuations. Changes in temperature may affect wavelength, performance, or measurement accuracy. A Thermoelectric Chip can help maintain a stable operating temperature for these components.
This makes thermoelectric cooling useful in telecommunications, optical instruments, spectroscopy equipment, and other precision applications.
Benefits of Thermoelectric Chips
Compact Design
One of the biggest advantages of a Thermoelectric Chip is its small size. Traditional refrigeration systems often require compressors, fans, tubing, and refrigerants. Thermoelectric modules can provide temperature control in a much smaller package.
This makes them suitable for portable electronics, compact instruments, and space-constrained equipment.
No Moving Parts
Thermoelectric modules operate without mechanical moving components. This can reduce mechanical wear and simplify system construction. With fewer mechanical components involved, properly designed thermoelectric systems can provide reliable operation over extended periods.
Precise Temperature Control
Thermoelectric technology can provide accurate temperature adjustment by controlling the electrical current supplied to the module. This allows engineers to design systems where maintaining a specific temperature is important.
Precision temperature control is especially valuable in scientific instruments, optical equipment, medical devices, and electronic systems.
Heating and Cooling Capability
A Thermoelectric Chip can perform both cooling and heating depending on the direction of electrical current. This eliminates the need for completely separate heating and cooling components in certain applications.
This reversible operation can simplify temperature-management systems and provide greater flexibility.
Environmentally Friendly Operation
Thermoelectric modules do not require refrigerants in the same way as conventional compressor-based cooling systems. This can make them an attractive option for applications where avoiding traditional refrigerants is desirable.
However, the overall environmental impact still depends on factors such as electricity consumption, manufacturing materials, and system efficiency.
Limitations to Consider
Although thermoelectric chips offer many benefits, they also have limitations. One important consideration is efficiency. For larger cooling requirements, conventional refrigeration systems may provide better energy efficiency.
Another challenge is heat removal. When a Thermoelectric Chip transfers heat, the hot side must release both the heat removed from the cold side and the electrical energy supplied to the module. An appropriately sized heat sink or thermal-management system is therefore essential.
The performance of the module can also change depending on ambient temperature and the required temperature difference. Proper system design is important to achieve reliable results.
Choosing the Right Thermoelectric Chip
Selecting the appropriate module requires consideration of several technical factors. Engineers typically evaluate cooling capacity, maximum temperature difference, operating voltage, current requirements, dimensions, and thermal resistance.
The intended application should also be considered. A small electronic sensor may require a different module from a portable refrigerator or laboratory instrument.
Proper heat dissipation is equally important. Even a high-performance thermoelectric module may deliver poor results if the hot side cannot release heat efficiently. Therefore, the chip, heat sink, power supply, insulation, and temperature controller should be considered as parts of one complete thermal system.
Future of Thermoelectric Technology
Thermoelectric technology continues to attract attention as manufacturers seek compact and reliable methods for thermal management. Improvements in semiconductor materials, manufacturing techniques, and module designs may help increase efficiency and expand possible applications.
Future developments could make thermoelectric systems more practical for advanced electronics, renewable-energy systems, automotive technology, medical equipment, and precision instruments.
As electronic devices become smaller and more powerful, localized thermal management will remain important. Thermoelectric chips offer a flexible approach because they can provide controlled heating or cooling within compact systems.
Conclusion
A Thermoelectric Chip is a versatile temperature-control component that uses the Peltier effect to move heat through semiconductor materials. Its compact design, lack of moving parts, precise control, and reversible heating and cooling capabilities make it useful across many industries.
Although efficiency and heat-dissipation requirements can present challenges, careful system design can help maximize performance. From electronics and medical equipment to automotive and optical applications, thermoelectric technology provides an effective solution for specialized temperature-management needs. As material science and engineering continue to advance, thermoelectric chips are likely to remain an important technology for modern thermal-control systems.
